Barndominium Plan IB-7500
With the right property conditions, location and budget, Barndominium Plan IB-7500 can be built turnkey in less than 12 months.
Turnkey construction of this plan on your North Carolina property
Inco Barndominums are living spaces inside red iron metal buildings
- Total Area Under Roof: 7500 Square Feet. Approx.
- Heated: 2661 Square Feet. Approx.
- Office Space: 1307 Square Feet. Approx.
- Unheated Shop/Garage: 3532 Square Feet. Approx.
- Building Width: 50’-0”
- Building Length: 150’-0”

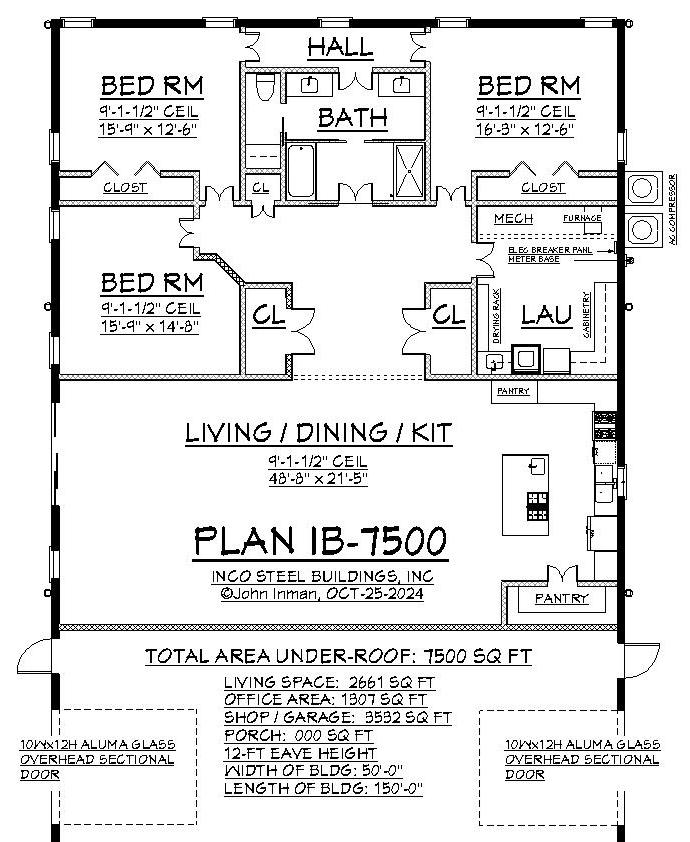

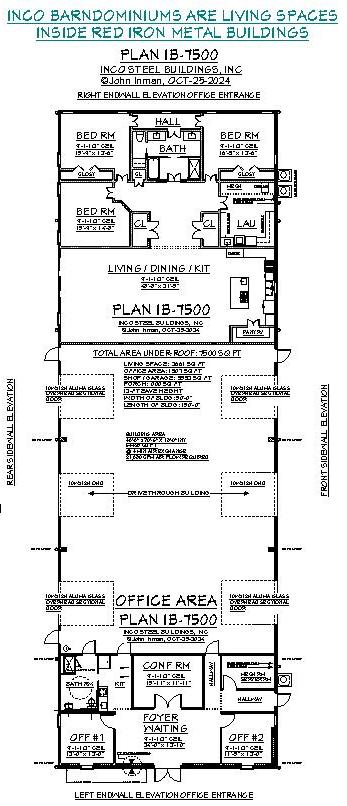

Floor Plan: Barndominium Plan IB-7500
The floor plan illustrates the expansive layout of the Barndominium including the large shop space, 2661 square feet of living space, and the commercial business office of 1307 square feet. In the shop area, all garage doors are drive-through the building.

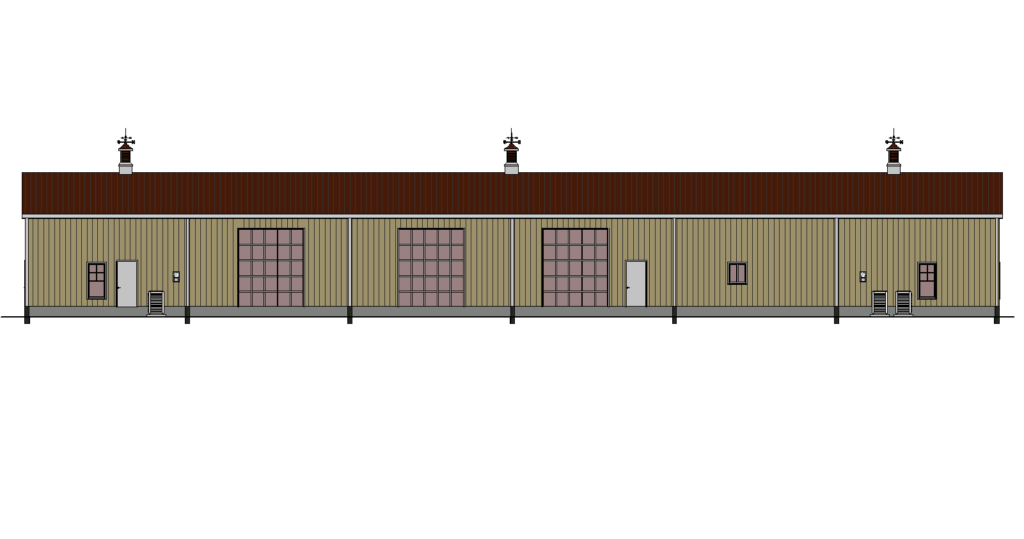

Front Elevation: Barndominium Plan IB-7500
The Front Elevation illustrates the front main entry into the building, one door into the commercial office, and three drive through garage doors into the shop space. The commercial office is located on the left end of the building. The living space is located on the right end of the building.

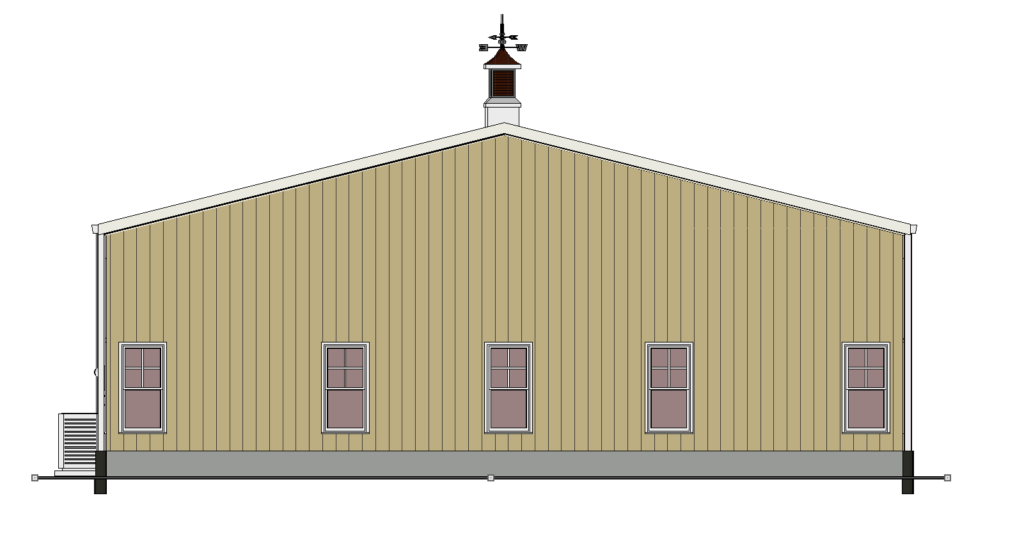

Right Elevation: Barndominium Plan IB-7500
The right elevation illistrates the living space windows.

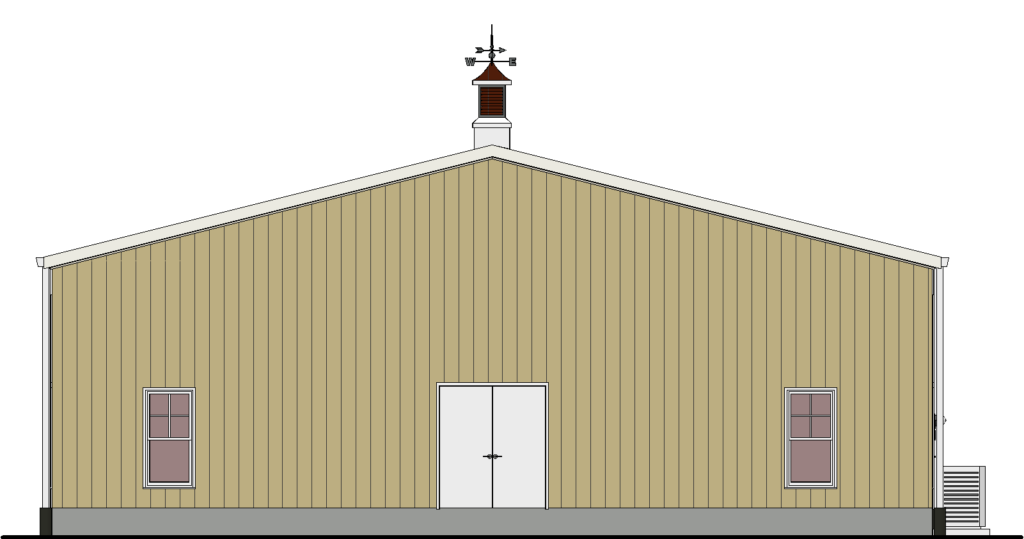

Left Elevation: Barndominium IB-6852
Plan IB-500 is shown on this left elevation, along with its office windows, and double entry door into the commercial office area.

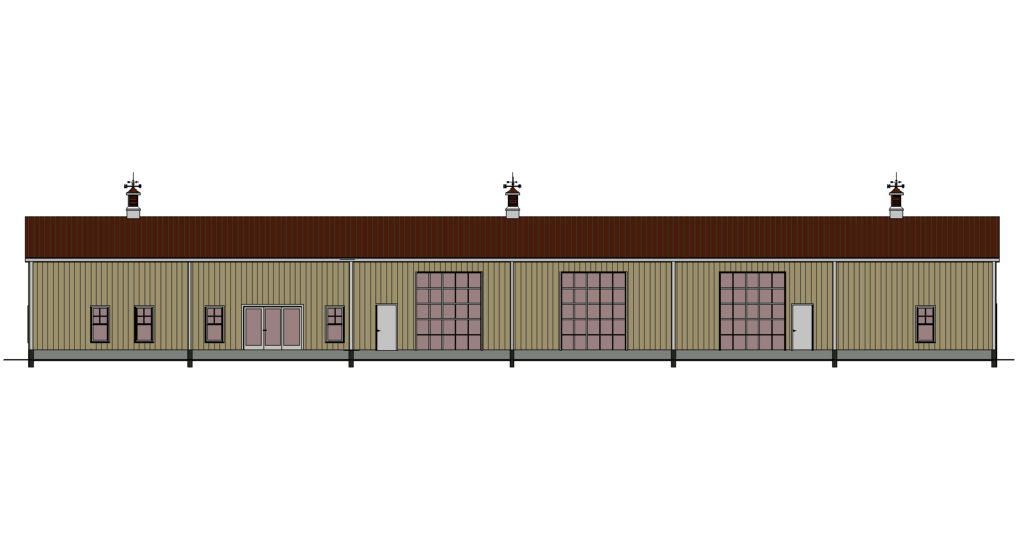

Rear Elevation: Barndominium IB-7500
The rear elevation illustrates the (3) garage doors, window into the office on right side, windows in the living space on the left end of building, the walk-in doors into the shop area, and the Andersen triple gliding door into the living space.
Living space is on the left of drawing. Shop space is in the middle. Commercial office is located on the right end of the building.
