Barndominium Plan IB-4816
With the right property conditions, location and budget, Barndominium Plan IB-4816 can be built turnkey in less than 12 months.
Turnkey construction of this plan on your North Carolina property
Inco Barndominums are living spaces inside red iron metal buildings
- Total Area Under Roof: 4816 Square Feet. Approx.
- Heated: 2161 Square Feet. Approx.
- Unheated: 2655 Square Feet. Approx.
- Building Width: 50’-0”
- Building Length: 100’-0”

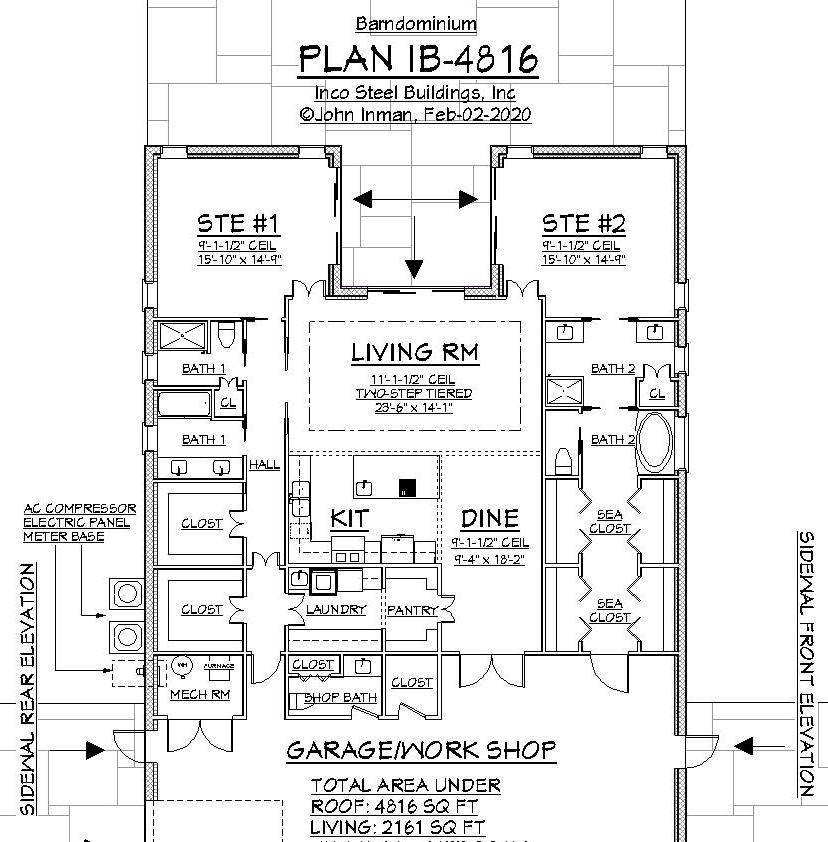

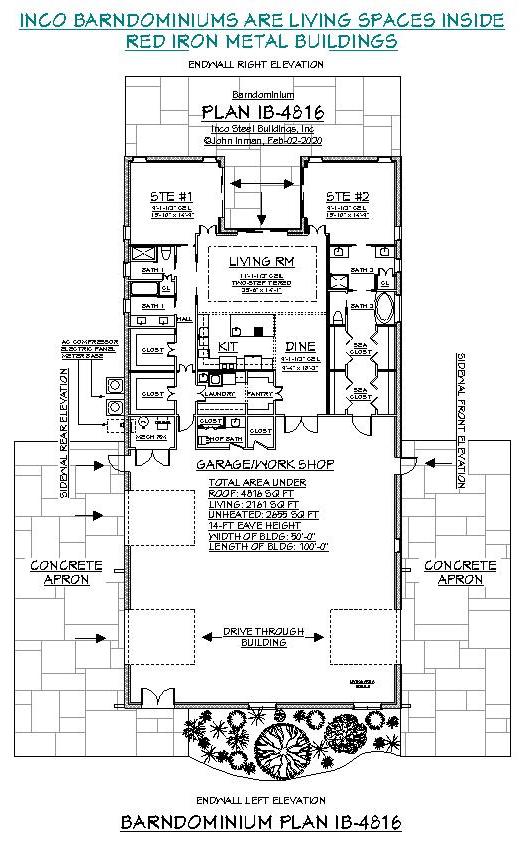

Floor Plan: Barndominium Plan IB-4816
The floor plan illustrates the expansive layout of the Barndominium including two garages, the large shop space, and 2161 square feet of living space. In the shop area, all garage doors are drive-through the building.

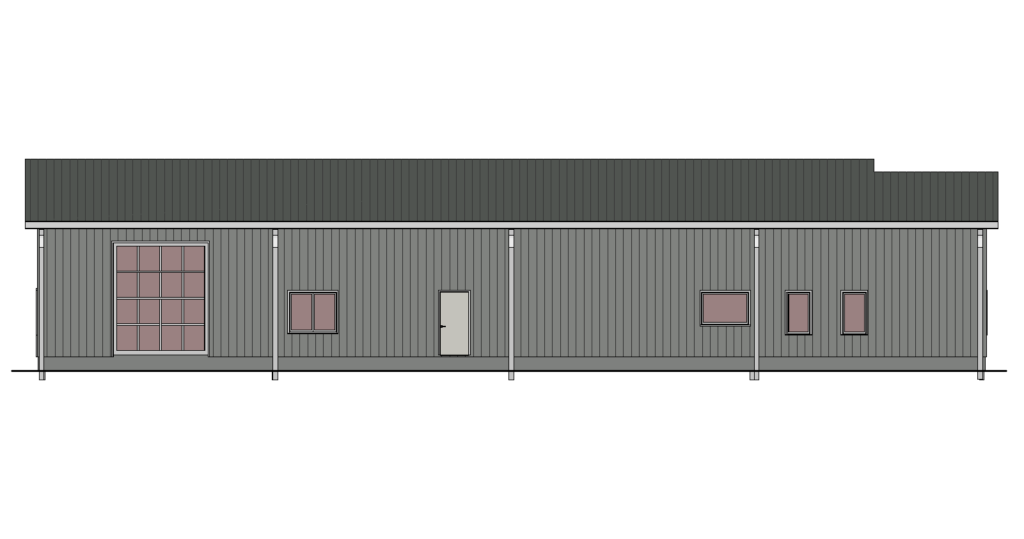

Front Elevation: Barndominium Plan IB-4816
The plan illustrates the main entrance of the building, as well as the drive-through garage door.

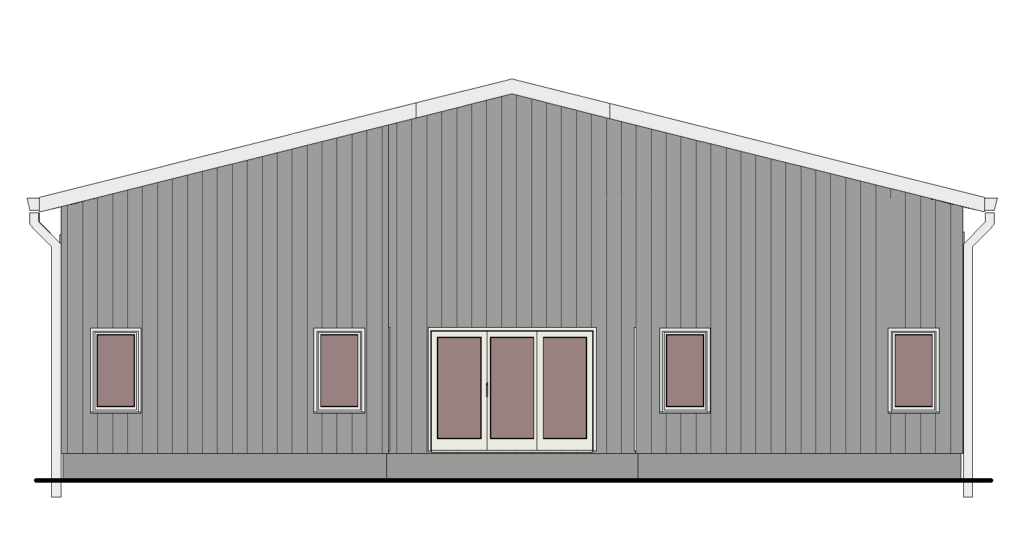

Right Elevation: Barndominium Plan IB-4816
The right elevation shows the garage doors, windows, and walk-in doors

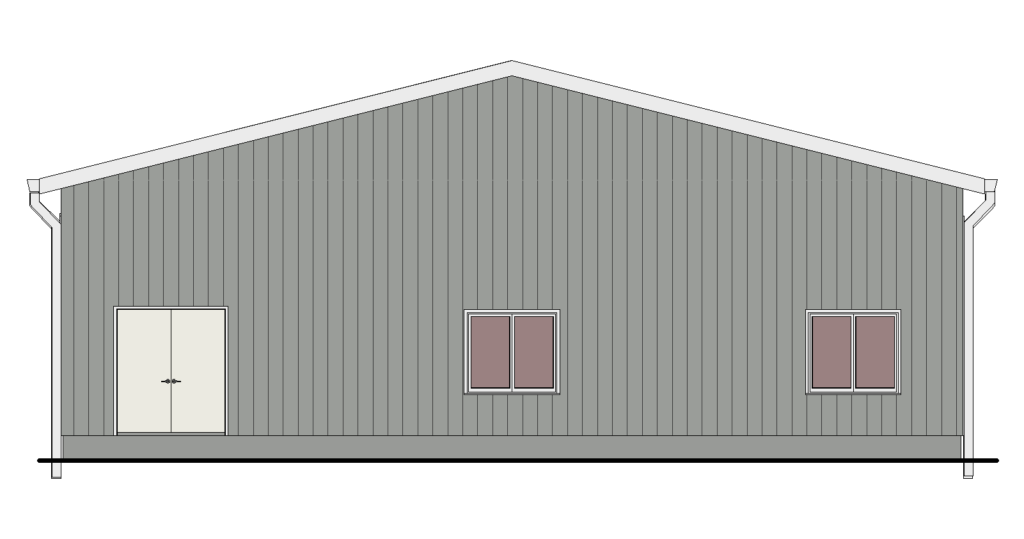

Left Elevation: Barndominium Plan IB-4816
Plan IB-4816 is shown on this left elevation, along with its living space windows, a window in the entry alcove for the home office and two windows in one of two the garages.

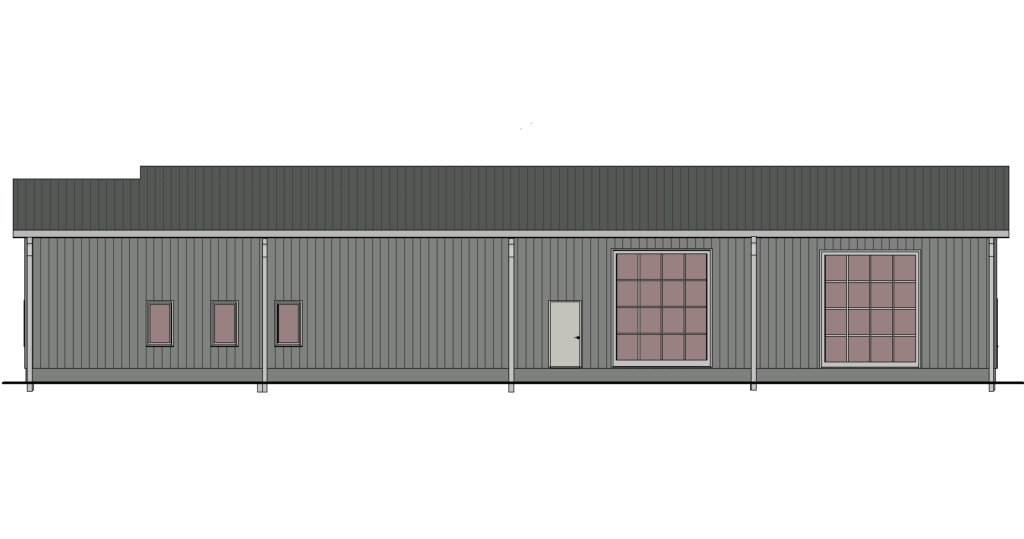

Rear Elevation: Barndominium IB-4816
The rear elevation shows the garage doors, windows, and walk-in doors
